Steel Cementitious Panel Anti-static HPL Finish. Are you ready to Buy? Call on +880 1896-292031

Steel Cementitious Panel Anti-static HPL Finish: Heavy-Duty Steel Cementitious Panel with Anti-static HPL Finish

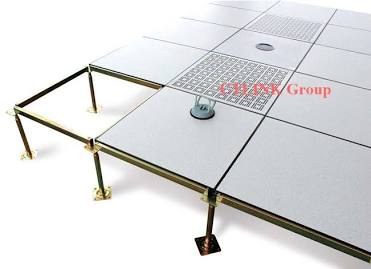

Steel Cementitious Panel Anti-static HPL Finish The Steel Cementitious Panel with Anti-static HPL Finish delivers elite structural support and electrostatic discharge protection for high-tech environments. Built with a cold-rolled steel outer casing filled with lightweight cellular cement, this panel offers extraordinary load-bearing capacity without flexing. The top surface features a premium High-Pressure Laminate (HPL) coating that actively dissipates static electricity, protecting server racks, telecom gear, and sensitive lab electronics from sudden ESD damage. Durable, scratch-resistant, and non-combustible, it creates a clean, organized underfloor space for cabling and HVAC airflow management in mission-critical facilities.

Revolutionize Your Infrastructure with the Steel Cementitious Panel with Anti-static HPL Finish

Steel Cementitious Panel Anti-static HPL Finish In modern data centers, dispatch centers, and high-tech manufacturing plants, flooring must do far more than support foot traffic. It serves as the primary defense for multi-million-dollar computing systems. The Steel Cementitious Panel with Anti-static HPL Finish combines maximum structural rigidity, fire protection, and active electrostatic safety into a single modular solution. Designed for heavy equipment loads and high-density cable routing, it ensures smooth daily operations while keeping maintenance hassle-free.

Engineered Core Strength: Steel Shell Meets Cementitious Filling

At the structural heart of each panel is a precision-formed cold-rolled steel container. The deep-stretched steel bottom pan features a hemispherical pocket structure welded to a smooth steel top sheet. High-strength lightweight cement fill is then injected under pressure, filling every cavity.

Flexural Resistance: Eliminates hollow booming sounds underfoot and prevents panel sag under heavy static equipment.
Extreme Load Handling: Easily supports heavy server cabinets, uninterruptible power supply (UPS) batteries, and rolling maintenance carts.
Dimensional Stability: Resists warping, shifting, or shrinking even when exposed to changing thermal environments and indoor humidity fluctuations.

Active ESD Shielding with High-Pressure Laminate (HPL)

Steel Cementitious Panel Anti-static HPL Finish Static charges generated by human movement or ambient friction can easily disrupt sensitive processing hardware. The top surface of the Steel Cementitious Panel with Anti-static HPL Finish addresses this threat with high-grade anti-static laminate.

This HPL surface layer maintains a consistent electrical surface resistance range between $10^6\, \Omega$ and $10^9\, \Omega$ . When electrostatic charges accumulate, the HPL layer drains them safely along black conductive edge trim, down through galvanized steel pedestals, and into the facility ground network. By neutralizing static sparks instantly, your network switches, storage drives, and automated control systems remain protected against data loss or hardware burnout.

Streamlined Airflow & Underfloor Utility Routing

Steel Cementitious Panel Anti-static HPL Finish Managing complex wiring bundles and cooling distribution is a constant challenge for technical managers. Installing a raised floor system creates a dedicated, organized underfloor plenum space.

Power feeds, fiber optic lines, and HVAC cooling air run neatly beneath the floor grid. Airflow grommets and perforated panels can be positioned anywhere across the grid, channeling chilled air straight into server intake racks to optimize energy consumption. When maintenance teams need to expand wiring or service cooling lines, they simply lift out individual modular panels using a suction panel lifter, without disturbing neighboring workspaces.

Built-in Fire Safety and Wear Resistance

Safety standards in commercial technical facilities require non-combustible materials. Made entirely from cold-rolled steel and inorganic cement, these panels deliver Class A fire resistance. In an electrical emergency, the panel will not feed flames or produce hazardous smoke.

Additionally, the outer steel shell features an electro-deposited epoxy paint coat, shielding the structural frame from moisture oxidation and rust over decades of continuous service.

Steel Cementitious Panel with Anti-static HPL Finish Specifications

Specification Parameter	Value / Technical Requirement
Product Name	Steel Cementitious Panel with Anti-static HPL Finish
Standard Dimensions	$600\text{ mm} \times 600\text{ mm}$ / $610\text{ mm} \times 610\text{ mm}$
Panel Thickness	$30\text{ mm}$ , $35\text{ mm}$ , or $40\text{ mm}$
Outer Casing	High-Grade Cold-Rolled Steel Sheet (Top sheet + Bottom pan)
Internal Core	Lightweight High-Density Cellular Cement Fill
Top Surface Finish	$1.2\text{ mm}$ Anti-static High-Pressure Laminate (HPL)
Edge Finish	Conductive ABS Black Trim Band
Surface Electrical Resistance	$1.0 \times 10^6\, \Omega - 1.0 \times 10^9\, \Omega$ (Anti-static rating)
Concentrated Load Range	$3000\text{ N} - 6680\text{ N}$ ( $300\text{ kg} - 680\text{ kg}$ )
Uniformly Distributed Load	$12,500\text{ N/m}^2 - 25,000\text{ N/m}^2$
Ultimate Failure Load	$\ge 3\times$ Rated Concentrated Load
Impact Load Rating	$67\text{ kg}$ ( $670\text{ N}$ ) Drop Test Compliant
Fire Resistance Class	Class A Non-Combustible Standard
Bottom Surface Protection	Corrosion-Resistant Epoxy Powder Coating / Zinc Galvanized
Pedestal Adjustment Range	$100\text{ mm}$ to $1200\text{ mm}$ adjustable subfloor clearance

Why Choose Steel Cementitious Panel with Anti-static HPL Finish

Choosing this steel-cementitious system gives facility engineers and property owners clear operational benefits:

Unmatched Load Bearing: Solid concrete fill inside a steel casing handles massive concentrated server loads without warping or structural failure.
Superior Electrostatic Protection: Durable HPL laminate prevents static build-up, safeguarding delicate silicone microchips.
Class A Fire Safety: Entirely non-combustible composition meets stringent municipal and industrial building fire codes.
Quiet, Solid Feel Underfoot: Eliminates the hollow metallic resonance of hollow tiles, creating a comfortable work environment.
Flexible Subfloor Access: Modular panels allow instant panel removal for cable routing, equipment upgrades, and airflow reconfigurations.

Pros and Cons: Steel Cementitious Panel with Anti-static HPL Finish

Pros	Cons
Exceptional load capacity for heavy server racks	Heavier panel weight requires suction cup lifters to lift
Active HPL surface ESD protection for electronics	Higher upfront material cost compared to standard tile
Non-combustible steel-cement fireproof construction	Must be installed by trained professionals for level grid fitting
Scratch-resistant HPL finish stands up to high foot traffic	Grounding network must be wired correctly during setup
Underfloor cable space reduces clutter and safety risks	Higher shipping weight compared to hollow aluminum panels

Frequently Asked Questions (FAQs)

1. What makes a steel cementitious panel better than a hollow steel panel?

Cementitious filling provides far greater concentrated load resistance, eliminates hollow echo sounds underfoot, and prevents the panel from denting or sagging when moving heavy equipment carts across the floor.

2. How does the anti-static HPL surface protect equipment?

The HPL surface layer is formulated with conductive agents that maintain an electrical resistance of $10^6$ to $10^9\, \Omega$ . Static electricity drains away through conductive edge bands and steel pedestals straight to the building earth ground before it can arc into sensitive computer hardware.

3. Can this raised floor system handle heavy server racks?

Yes. Depending on the panel grade selected, the system supports concentrated loads from $3000\text{ N}$ up to over $6600\text{ N}$ , with ultimate loads exceeding $3\times$ those values.

4. How do technicians access cables underneath the floor?

Technicians place a double-suction cup panel lifter onto the smooth HPL surface and lift the tile directly out of the steel grid. Underfloor maintenance can be completed in minutes without disturbing surrounding floor panels.

5. What maintenance is required for the anti-static HPL surface?

Regular sweeping and damp mopping with neutral floor cleaners is all that is needed. Avoid using wax, silicon polishes, or harsh solvent cleaners, as these can coat the surface and reduce its anti-static performance.
